Not 'if', but 'when': city planners need to design for flooding. These examples show the way

Elizabeth Mossop, University of Technology Sydney

As the current New South Wales flooding highlights, it’s not enough to continue to build cities and towns based on business-as-usual planning principles — especially as these disasters tend to disproportionately affect disadvantaged populations, increasing inequality in Australia.


We need to design our urban spaces around the idea that flooding is inevitable. That means not building on flood plains, and thinking creatively about what can be done to create urban “sinks” to hold water when floods strike.


Examples from overseas show what’s possible when the political will is there.




Read more: It’s 2am, you’re sleeping, and a flash flood hits your home. Without a warning system, what do you do?




Keeping people out of harm’s way


It beggars belief this needs to be said, but it is a government responsibility to keep citizens out of harm’s way. The ongoing plans for new housing in flood-prone areas such as the Hawkesbury-Nepean Valley directly contravene that.


Understanding urban flooding requires us to contend with the underlying natural systems over which we have built our cities and towns.


We have learned the hard way we cannot effectively “design out” flooding. Instead, we must find ways to work with the natural systems of drainage and catchments. We must create urban systems to accommodate flood waters. That reduces risk to houses, schools, hospitals, businesses and other key infrastructure.


We have tried channelling rivers with levees and flood walls and it does not work - when these constructions fail (and they usually eventually do), the danger is immense. We need to find ways to safely allow rivers to expand in times of flood and to contract when the rains subside. This cycle of expansion and contraction is normal and natural for rivers — it is we humans who need to change.


The cities of Rotterdam in the Netherlands and New Orleans in the United States are built on river deltas and are at a very high risk of flooding. The design strategies used by planners in these cities provide effective models for reducing flooding harm in Australia.


Rotterdam: rethinking its relationship with water


Since 2001, Rotterdam has been transitioning to become a resilient delta city by rethinking its relationship with water.


The city has developed a series of sophisticated plans to address flooding, as well as other climate impacts such as drought and extreme heat.


Some plans are enormous in scope, involving city-wide strategies. Others are much more targeted, small-scale projects that can be undertaken by communities and individual households. You need both.


These plans are informed by the idea that it’s not just about applying a technical solution. A cultural change is also needed, so communities understand the urgency of the climate crisis and why the way we build towns and cities has to evolve.


The goal is to make the city a better place for all and to promote social cohesion (a necessary ingredient in any effort to build climate change resilience).


Water management and climate adaptation should be factored into every urban plan and every project, small or large.


Rotterdam’s plans include a range of different approaches. There are “water squares” that use public open spaces to store flood waters during times of heavy rain. These urban sinks can be used as hangout spaces on dry days, and can hold vast amounts of water in heavy rain, keeping flood water away from properties.



This is very similar to the approach taken in Sydney’s Victoria Park, where parks are all at a lower elevation than surrounding streets. This allows the temporary storage of stormwater.


The Rotterdam program also includes other strategies for alternative water storage, the removal of hard surfaces and creation of more green space, and the proliferation of green roofs and roof landscapes. The goal is to create spaces that can hold and absorb rainwater when it falls.


Rotterdam’s investment in innovation and development in urban water management has led to a new knowledge industry for the city, with businesses and research institutes disseminating their expertise worldwide.


New Orleans: after Katrina, a new way of doing things


Following the devastation of the levee failures after Hurricane Katrina in 2005, New Orleans has gradually moved to a regime of urban development in which every project addresses the need to deal with stormwater and flooding on site.


In the Lakeview neighbourhood, for example, the street system is being re-engineered to use all of its alleyways as green infrastructure. They will have permeable paving and special vegetated channels called bioswales over large gravel storage beds to absorb and store stormwater. This will take the pressure off the street drainage.

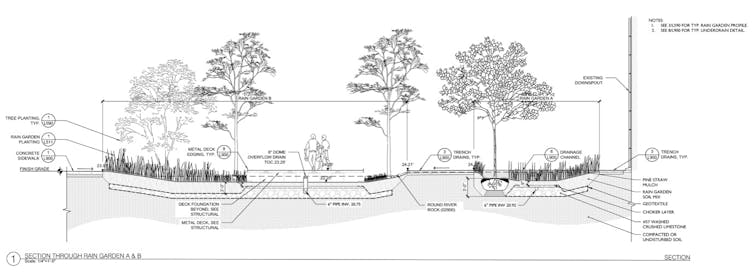

The campus of Tulane University in uptown New Orleans has a stormwater masterplan. This has led to the development of a series of “stormwater gardens” that can filter and store large volumes of water, protecting the rest of the site from flooding.



The campus of Tulane University in uptown New Orleans has a series of ‘stormwater gardens’ that can filter and store large volumes of water. Spackman Mossop Michaels, Author provided


In downtown New Orleans, where there is little natural ground, new buildings have to find architectural solutions for water management.


On the roof deck of the Standard Apartments, a 'blue roof' filters stormwater.
On the roof deck of the Standard Apartments, a ‘blue roof’ filters stormwater. Spackman Mossop Michaels, Author provided


Underneath the tiny alley that leads into Bar Marilou at the Ace Hotel, massive underground storage tanks manage all of the stormwater for the entire hotel.


On the roof deck of the Standard Apartments, a “blue roof” filters stormwater through carefully selected plants. Water is then stored below the paving and above the parking deck.


At the Paul Habans Charter School on New Orleans Westbank, the entire school grounds have been converted to clean and store water. Students are taught onsite about water management and natural systems.

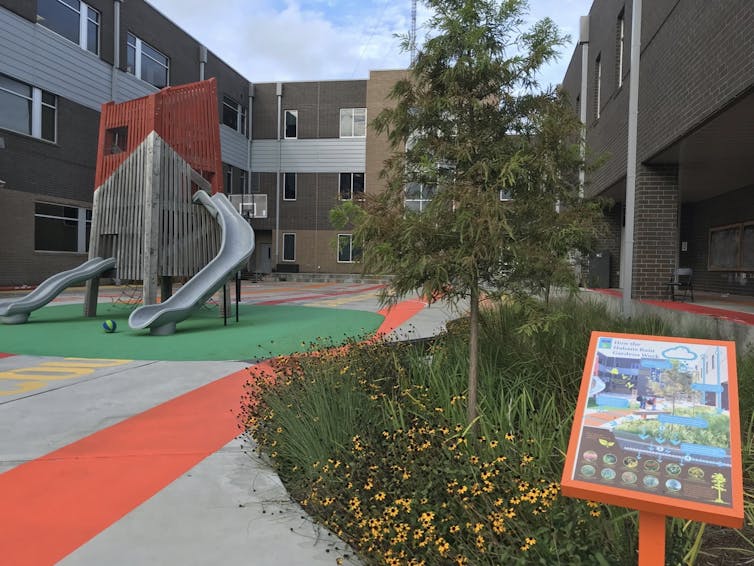

In the Green Schoolyard, a formerly flooded area has been redesigned to accommodate planted swales and water storage.


In the Habans Stormwater and Nature Centre, a workforce development program for Greencorps youth is building an extensive artificial wetland that will cleanse and store water as well as provide environmental education.


In the Habans Stormwater and Nature Centre, a workforce development program for Greencorps youth is building an extensive artificial wetland.
In the Habans Stormwater and Nature Centre, a workforce development program for Greencorps youth is building an extensive artificial wetland. Spackman Mossop Michaels, Author provided


Change is clearly possible. It might not be easy, but as the devastation under way in NSW this week shows, it is better than the alternative.




Read more: It’s 2am, you’re sleeping, and a flash flood hits your home. Without a warning system, what do you do?




This story is part of a series The Conversation is running on the nexus between disaster, disadvantage and resilience. You can read the rest of the stories here.The Conversation


Elizabeth Mossop, Dean of Design, Architecture and Building, University of Technology Sydney


This article is republished from The Conversation under a Creative Commons license. Read the original article.
